Cabinet Door Hinge Drilling Guide & Mounting Tool

FEATURES

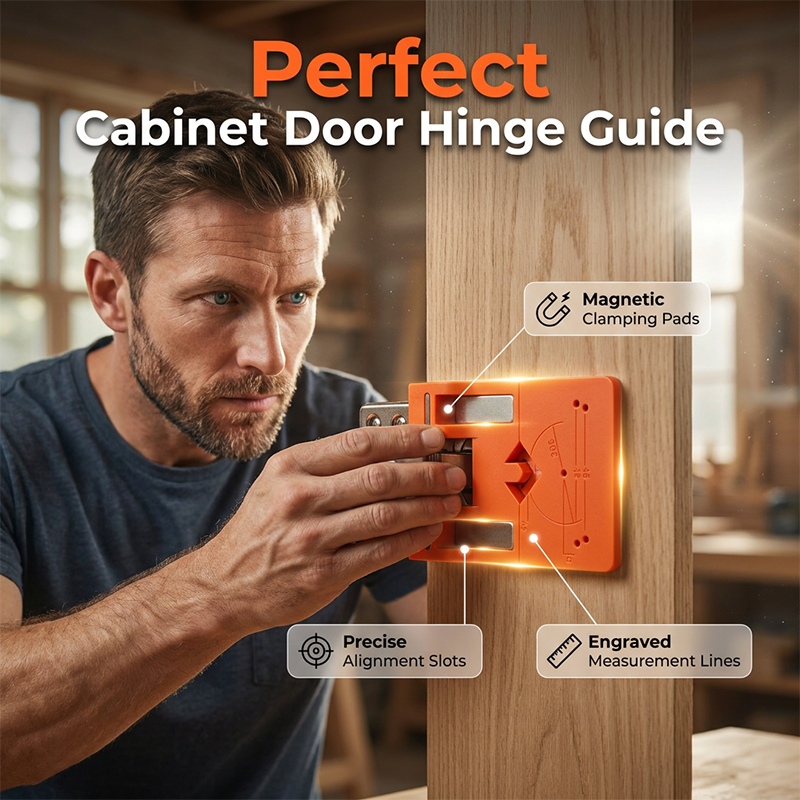

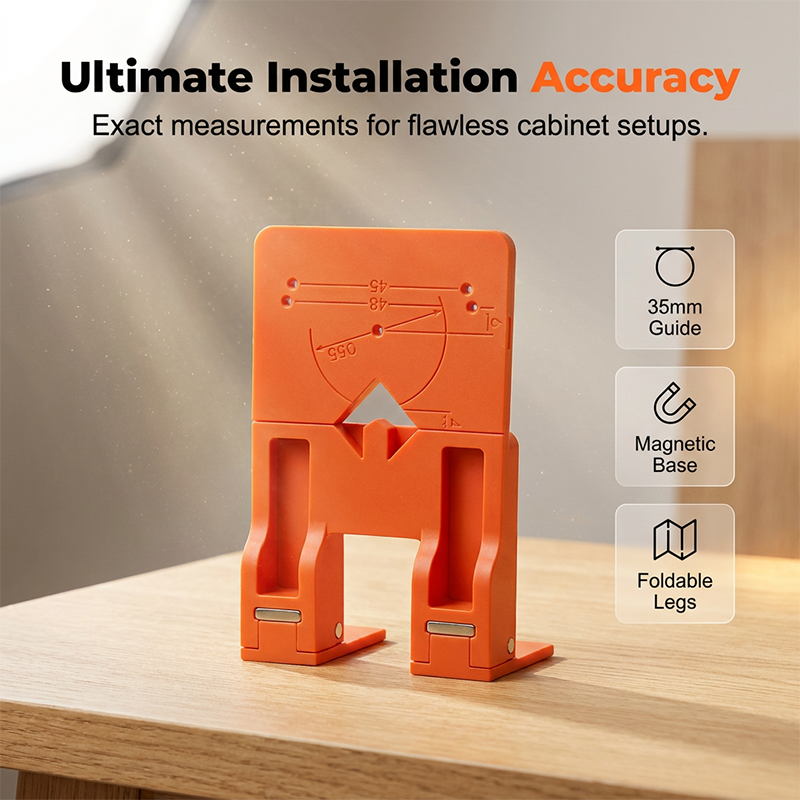

PERFECT CABINET DOOR HINGE GUIDE - Upgrade your woodworking projects with this perfect cabinet door hinge guide. Engineered for precise alignment, it ensures quick, professional-grade installations every time.

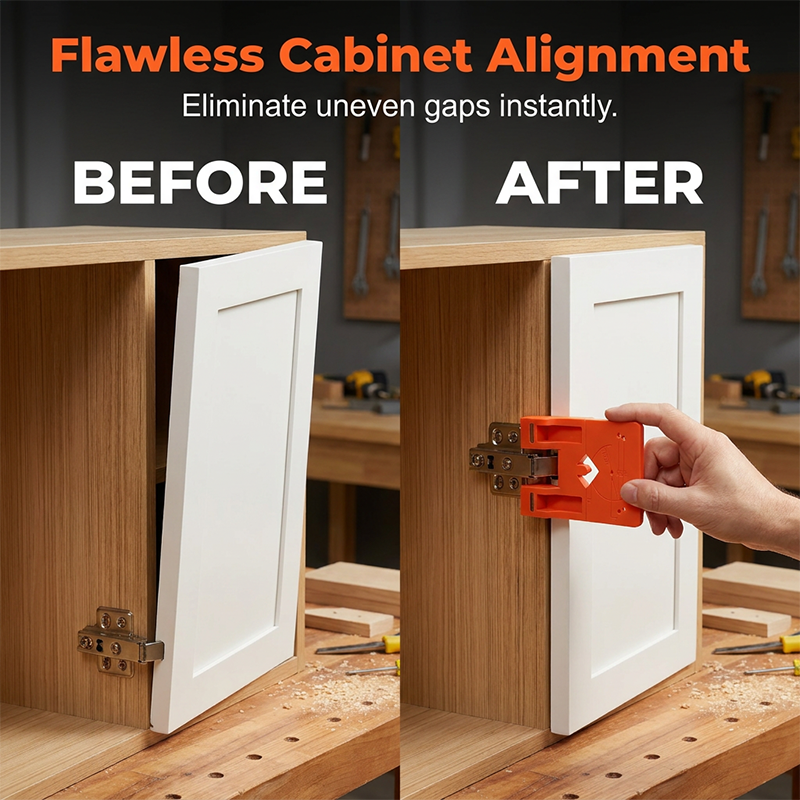

FLAWLESS CABINET ALIGNMENT - Say goodbye to crooked doors and uneven gaps. This functional problem solver guarantees a flush, factory-perfect finish for all your home improvement projects.

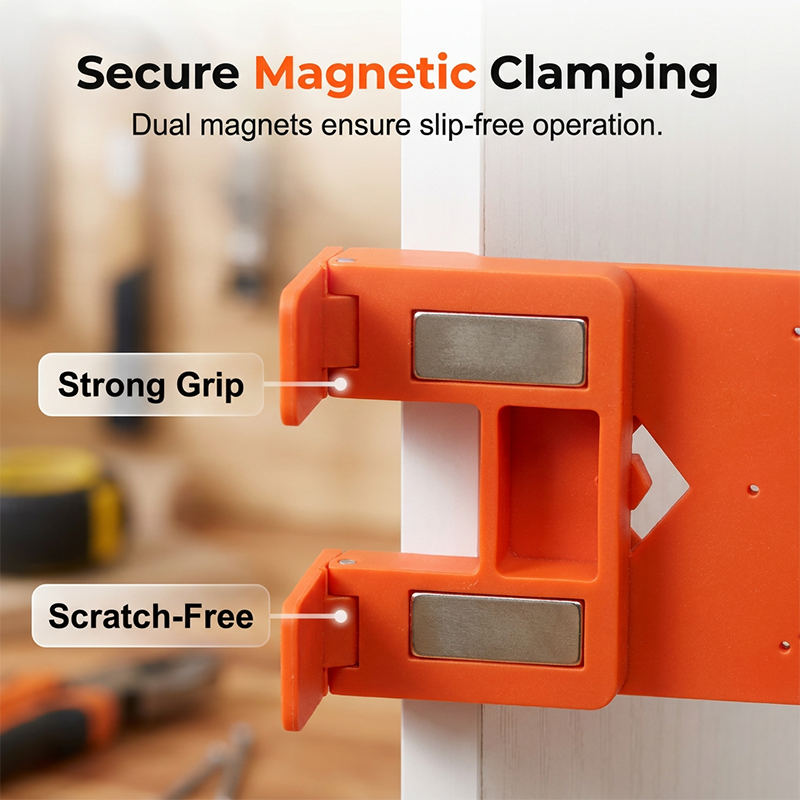

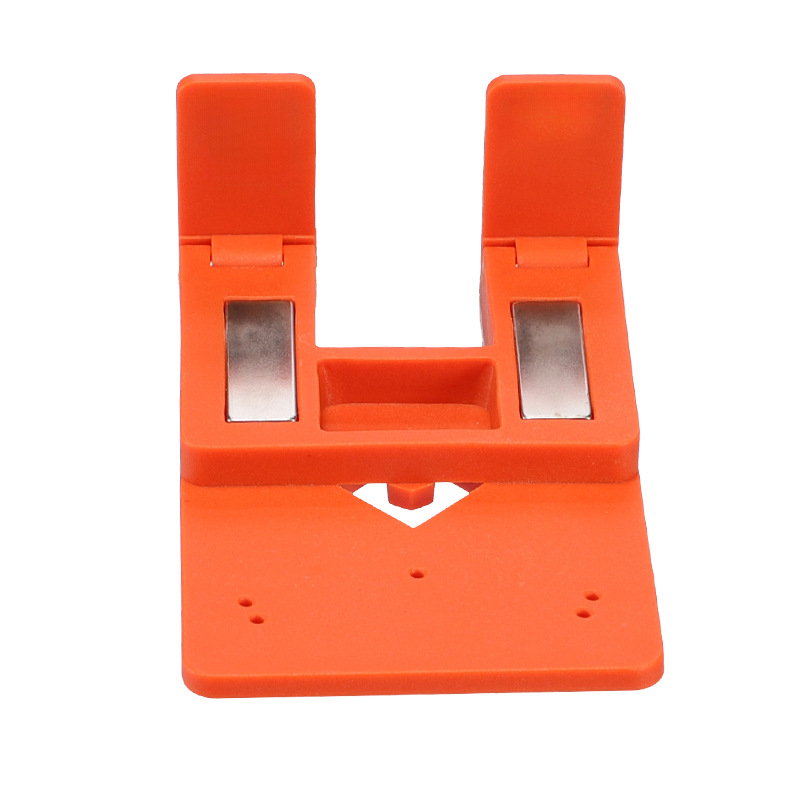

SECURE MAGNETIC CLAMPING - Built-in premium magnets firmly grip the cabinet frame, freeing your hands for precise drilling and screw placement without the risk of slipping.

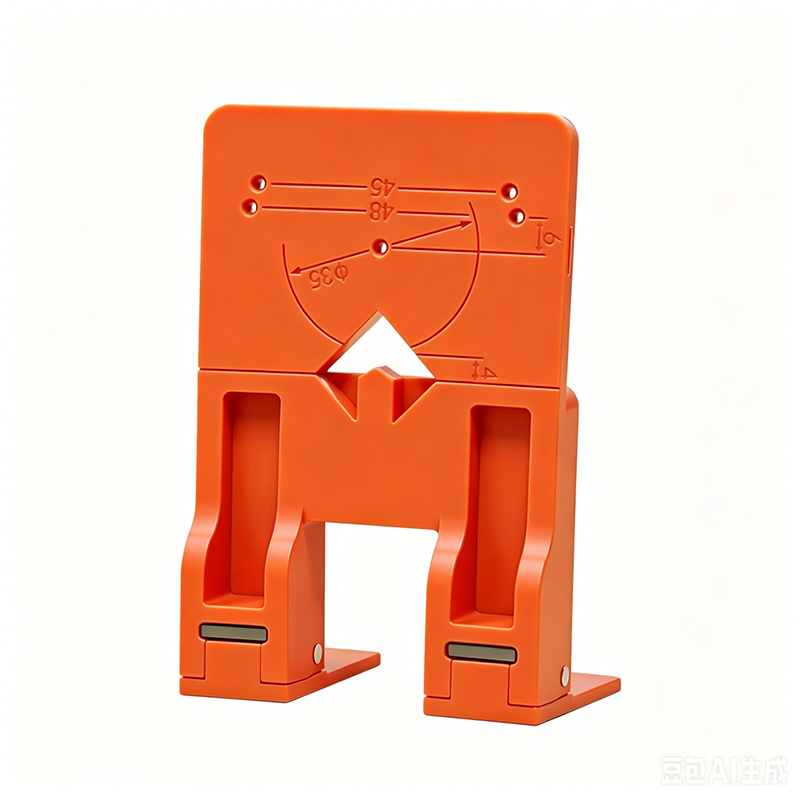

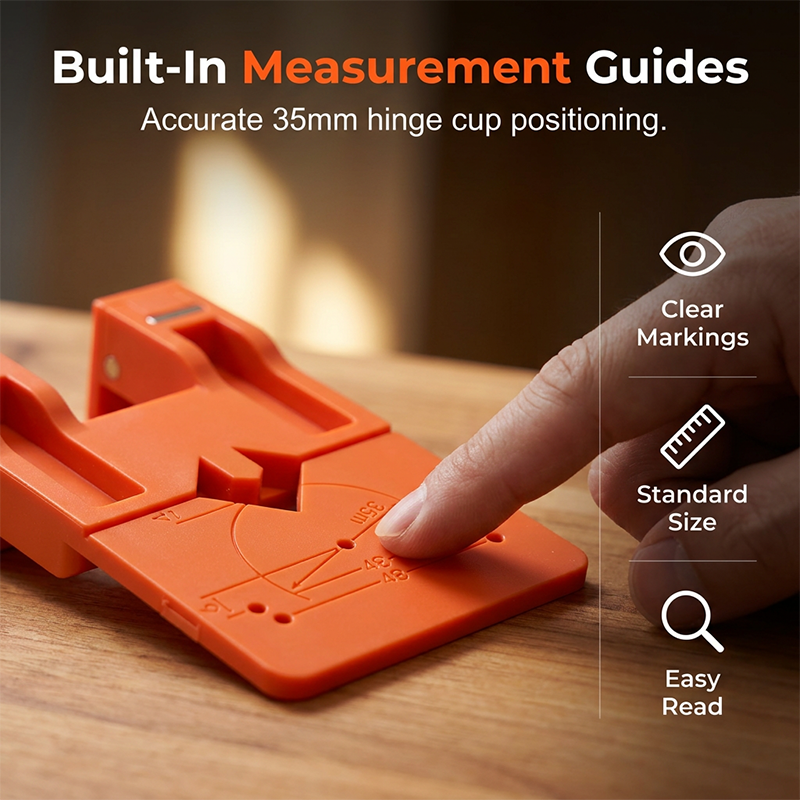

BUILT-IN MEASUREMENT GUIDES - Features clear, molded-in measurement guides for standard 35mm concealed hinges, ensuring perfect placement every single time without needing extra rulers.

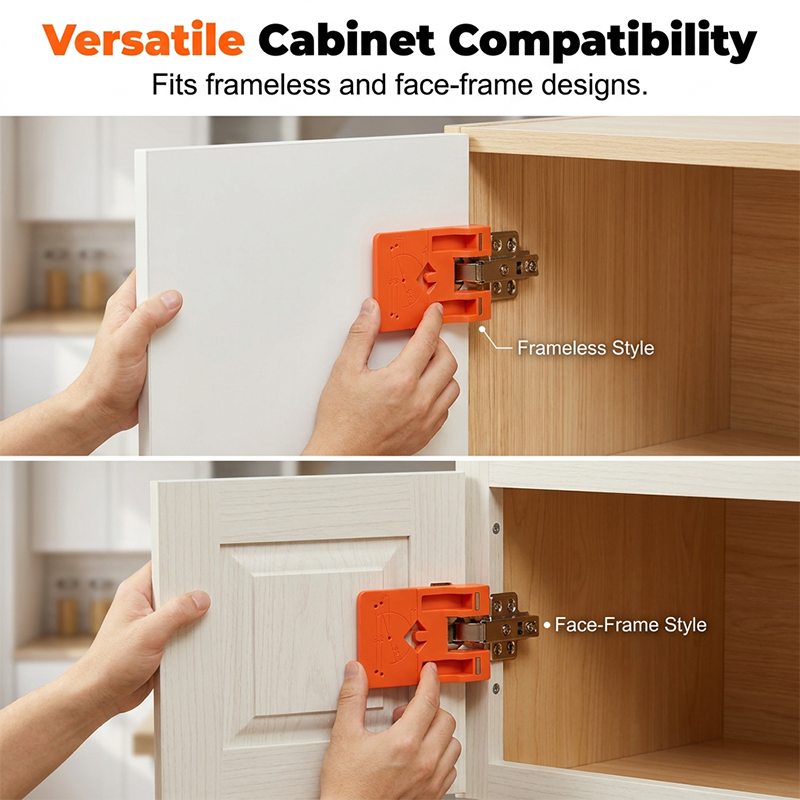

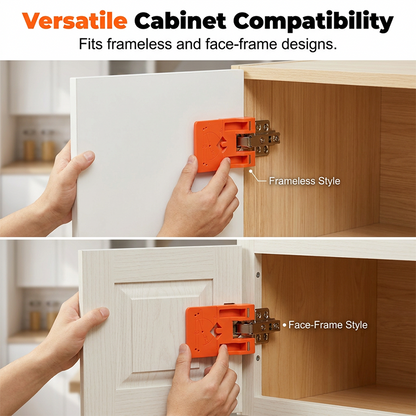

VERSATILE CABINET COMPATIBILITY - Designed to work seamlessly with both frameless and face-frame cabinet styles, making it the ultimate versatile mounting tool for any kitchen upgrade.

SPEC

Color: Orange

Size: 100mm x 66mm (3.94 inches x 2.6 inches)

Material: Plastic

Applicable Hinge: Full overlay, Half overlay, Inset

Hinge Cup Size: 35mm (1.38 inches)

Edge Distance: 4mm (0.16 inches)

Gap Size: 2.6mm (0.1 inches)

PACKAGE INCLUDES

1 x Hinge Installation Jig

NOTES

This jig is designed for 35mm cup-style concealed hinges. Please verify your hinge type before use.

Ensure the surface is clean before using the magnetic feature to prevent scratching.

Drill bits and hinges are not included with this positioning tool.
